Name: 32-bit MCU Programmer e-Writer32
SKU: e-Writer32-V1.1
Availability: InStock

32-bit MCU Programmer e-Writer32

₹11,642.00

The e-Writer32 is a programmer dedicated designed for the HT32 series Flash MCUs. You can use a HT32 adaptor or your target board to program the MCU. Connect the programmer to your computer via a USB cable and open the software, HOPE3200, for programming.

5 left in stock

Description

MATTERS NEEDING ATTENTION

Please be informed that some MCUs have a larger Flash ROM (indicated as following) must be programmed by using the e-Writer32 V1.1.

Part number	Supported adaptor	Programmer
HT32F61244	ESKT32ICPB ESKT3248LQFP_61244/5 ESKT3264LQFP_61244/5	e-Writer32 V1.1
HT32F61245	ESKT32ICPB ESKT3248LQFP_61244/5 ESKT3264LQFP_61244/5	e-Writer32 V1.1
HT32F61355	ESKT3248LQFP_61355/6 ESKT3264LQFP_61355/6	e-Writer32 V1.1
HT32F61356	ESKT3248LQFP_61355/6 ESKT3264LQFP_61355/6	e-Writer32 V1.1
HT32F61357	ESKT3248LQFP_61357 ESKT3264LQFP_61357	e-Writer32 V1.1
HT68FV022	ESKT328SOP_68XV02X	e-Writer32 V1.1
HT68FV024	ESKT328SOP_68XV02X	e-Writer32 V1.1

You can identify the e-Writer32 V1.1 and e-Writer32 based on the label on the back of the product.

Product information

Dimension: 202 x 201 x 38 mm
Net Weight: 357g

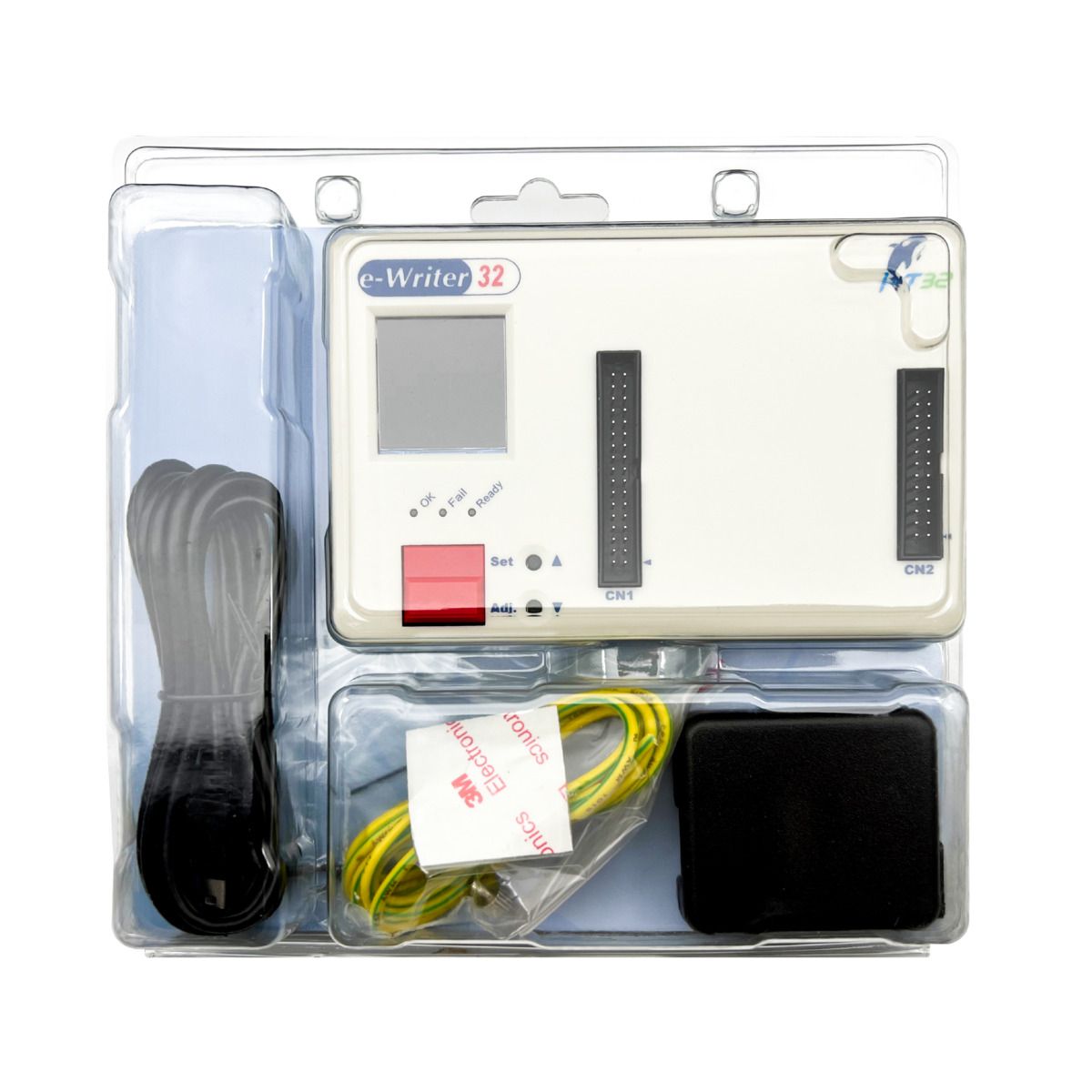

Product includes:
1. Programmer e-Writer32 x 1
2. USB cable x 1
3. 5V USB power adapter x 1
4. Ground wire (1.5M) x 1
5. Screw x 1

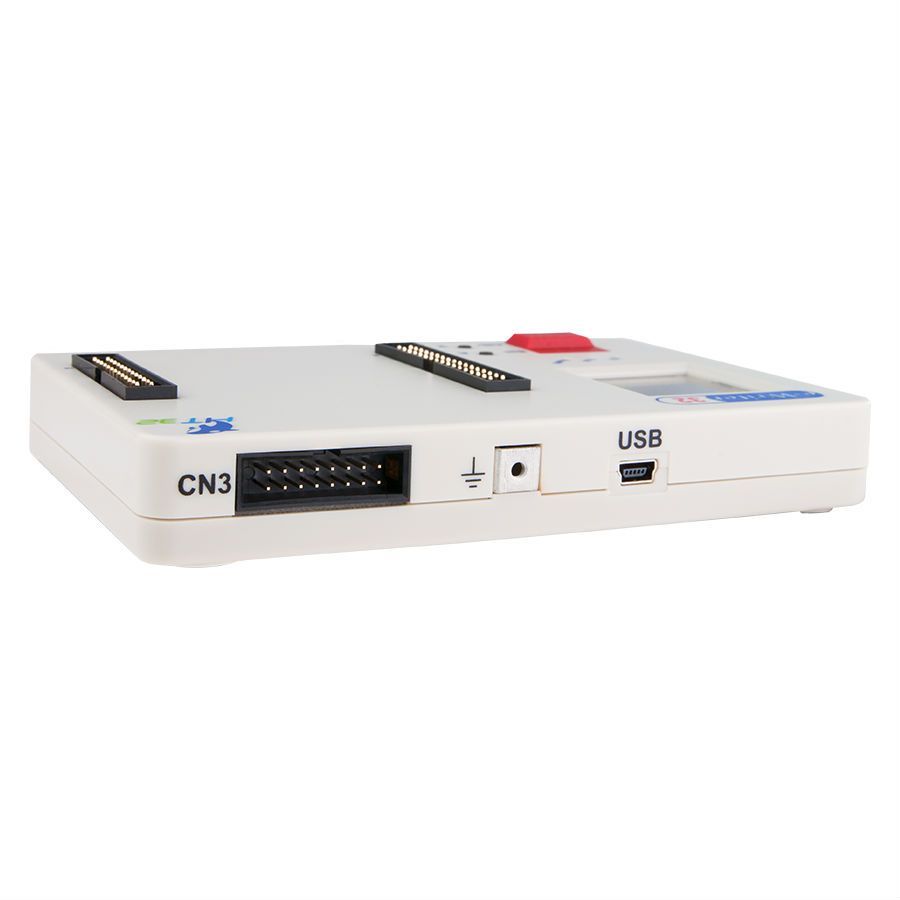

HARDWARE OVERVIEW

DEVELOPMENT ENVIRONMENT

Required Materials

Programmer: e-Writer32
Software: HOPE3200
MCU and the adapter / target board

RESOURCES

Programmer: e-Writer32, including user guide, software, etc.
Adaptor: e-Socket32, including HT32 adapters information.

Additional information

Weight	0.600 kg
Dimensions	22 × 22 × 16 cm
