Description
PRODUCT INFORMATION
- Dimensions: 76 x 70 x 18 mm
- Net weight: 31g
RESOURCES
- Holtek e-Socket32 ESKT32ICPB
- Holtek Programmer e-Writer32, including user’s guide, software, etc.
- Holtek package information

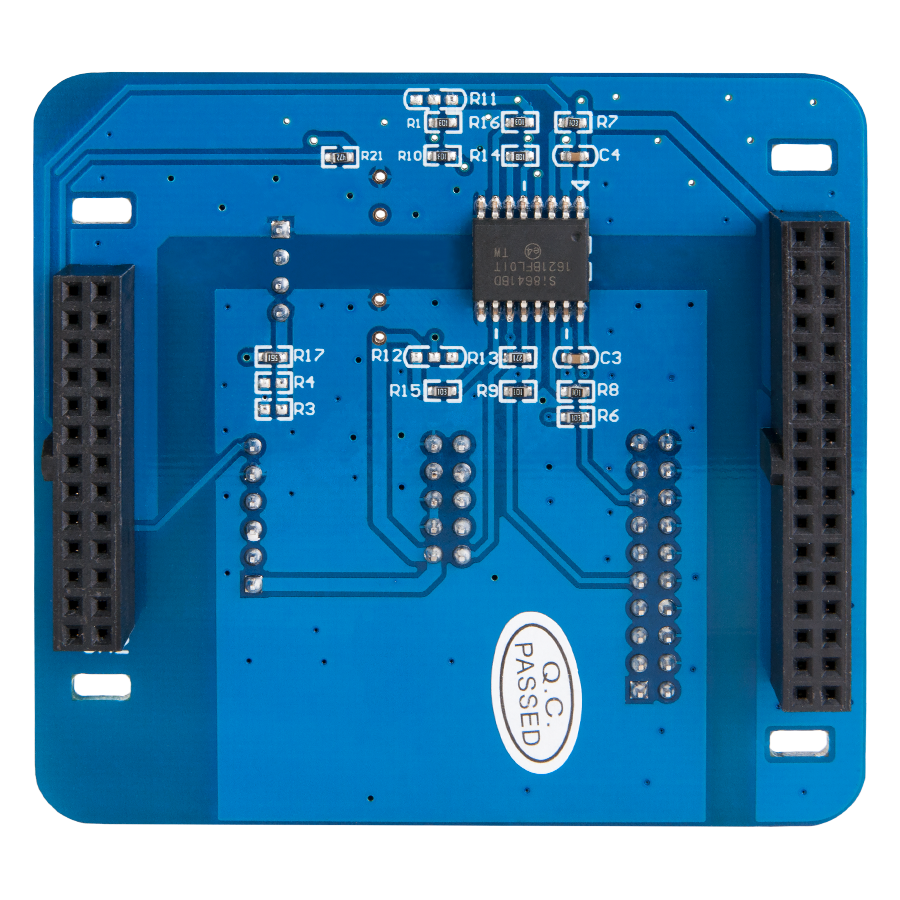

Adaptor ESKT32ICPB
₹4,105.15
The ESKT32ICPB is used to perform ICP (In-Circuit Programming) of Holtek 32-bit MCU. It must be used together with the e-Writer32 or e-Writer32 V1.1 programmer based on the MCU you used. For more information, please refer to e-Writer32 page.

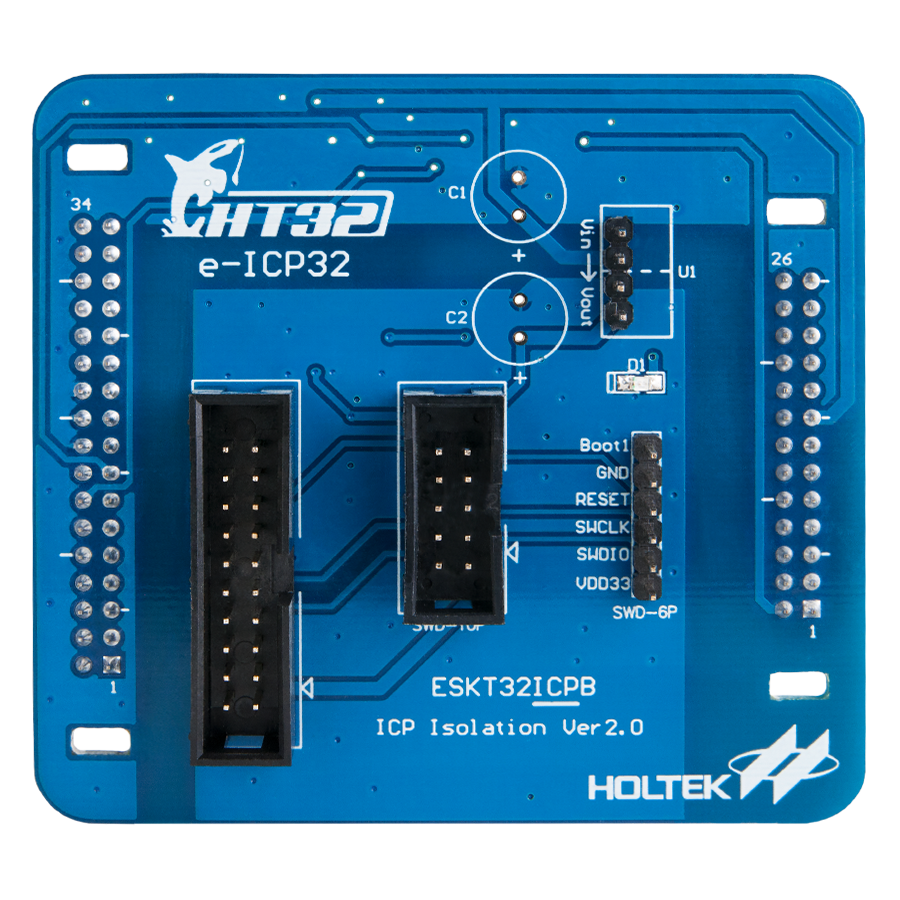

To perform ICP, insert this adaptor board into the slot on the e-Writer32 and connect one of the three on-board SWD programming connectors (SWD-6P, SWD-10P and SWD-20P) to the target board with cable or jumper wires.
HSN Code: 8504.40.20.00-3
5 left in stock
Additional information
| Weight | 0.300 kg |
|---|---|
| Dimensions | 16 × 13 × 13 cm |
