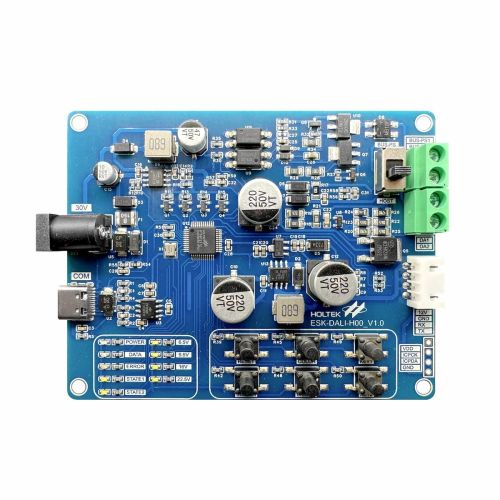

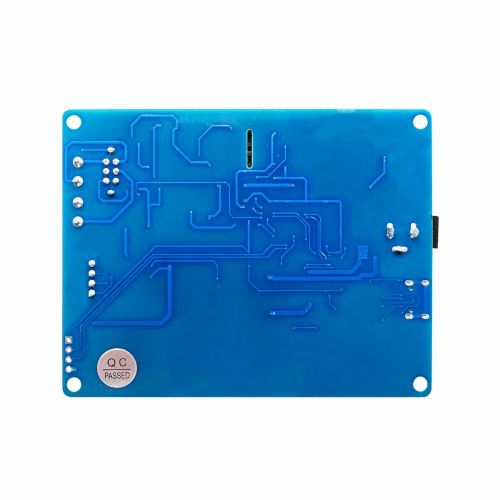

DALI Host emulator board ESK-DALI-H00

The product offers two power supply methods.

1. DC Jack interface: DC 30V
   We provide one adapter with the product. When supplying power from the DC Jack interface, the power selection switch should be switched to ‘HOST’.
2. DALI bus power supply interface: 16V
   When supplying power from the DALI bus power supply interface (BUS-PS1 & BUSPS2), the power selection switch should be switched to ‘BUS-PS’.

1. RESET: to reset the product
2. SWITCH: users can switch voltages (4 levels, 6.5V/9.5V/16V/22.5V) when supplying power from the DALI bus power supply interface. The corresponding LED indicator lights up upon switching the voltage.

The BRIGHT and COLOR buttons are used to control the LED (LED1 & LED2) on the DALI module debug board ESK-DALI-DT8TC00.

1. BRIGHT:
   ⬥ Short-press: turn on/off LEDs
   ⬥ Long-press: adjust the brightness of LEDs
2. COLOR:
   ⬥ Short-press: switch color temperature of LEDs (warm/cool color)
   ⬥ Long-press: LED color temperature gradually cools or warms.
3. KEY1 & KEY: reserved buttons

The product includes 9 LED indicators, with four on the right side displaying the current voltage.
The remaining five on the left side serve additional functions:

1.  POWER : when the product is powered on, it will light up
2.  DATA : will light up during communication
3.  ERROR : will light up if an error is detected in the output/input voltage or output current.
   In this situation, the bus output will be protected and will return to normal once the error is resolved.
4. STATE1: when the ‘Auto Set’ function in the DALI workshop is enabled, it will light up.
5. STATE2：when the ‘Parameter Setting’ interface is opened, it will light up.

You only need one ESK-DALI-H00 to cascade multiple DALI LED driver control modules.
Please refer to the following wiring diagram, where we cascade 3 modules through the DALI debug board, ESK-DALI-DT8TC00, and power is supplied from the DC jack.

1. Dimension: 95 x 75 x 15mm (PCB)
2. Weight (including assemblies): 231g
3. Product includes: ESK-DALI-H00 x1 | adapter: x1 | Nylon post x 4

1. Development platform: DALI Workshop, including user’s guide, software.
