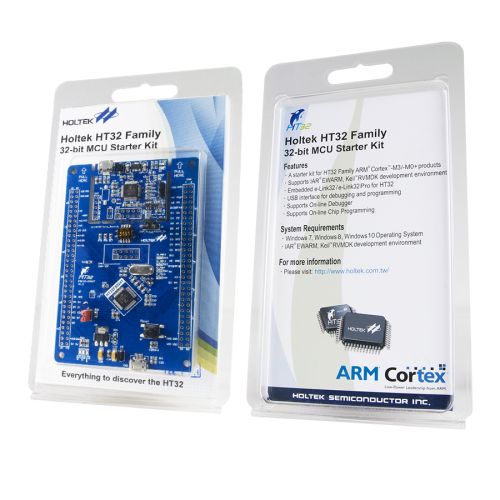

HT32F50241 Starter Kit ESK32-30507

Description

The HT32F50241 Starter Kit uses the 32-bit Arm^® Cortex^®-M0+ high performance, low-power microcontroller, and is designed to help new users get up and running and using this Holtek device in the shortest possible time frame. It provides a low-cost platform which together with the software development platform, also provides a complete solution from evaluation, programming to production.

Characteristics

1. Designed to get users started with the Cortex^®-M0+, by providing a low-cost platform. Together with the convenience of its software development platform, it provides a complete solution from evaluation to production
2. Using HT32F50241 high performance, low-power microcontroller
   1. Up to 20MHz operating frequency
   2. 64KB Flash, 8KB SRAM
   3. Integrated multiple Timers, 2 I²C functions, 2 SPI functions, 1 USART functions,2 UART functions, single 12-bit A/D converter. Can be used for the testing and development of many external devices
   4. 48LQFP package
   5. 20.000 MHz External Crystal Clock
   6. 40 programmable general purpose I/O pins

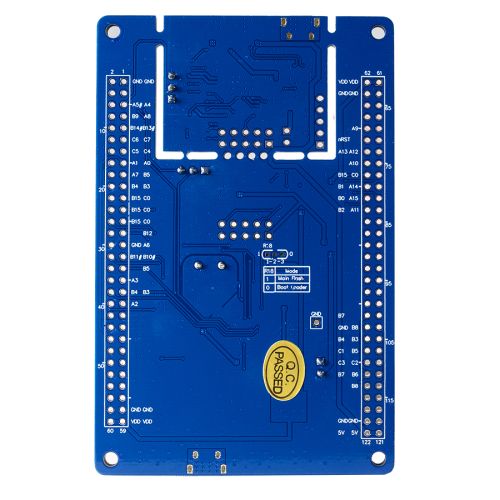

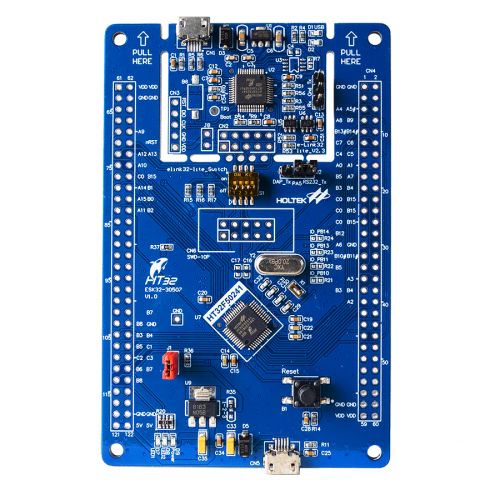

3. Comprises Target Board and Serial-Wire Debugger
4. Can use the Target Board external power supply or be powered by the e-Link32 Pro USB supply

Development Environment

1. Provides a standard C language program development environment
2. Provides a comprehensive functional library avoiding much complicated lower level functional development
3. Integrated hardware debug interface, SWD, connects to the IDE using a USB. The system will download the programs and debug immediately
4. Provides a standard development environment, including Keil uVision and IAR EWARM
