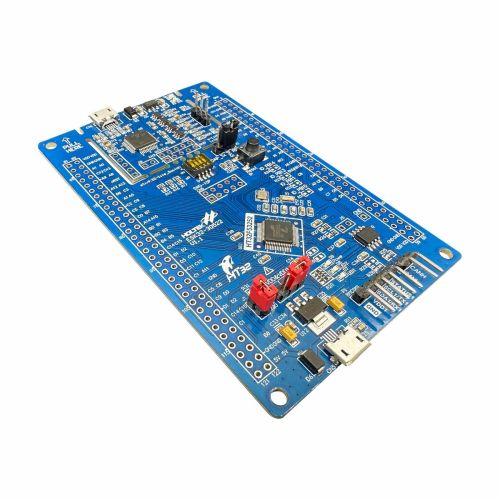

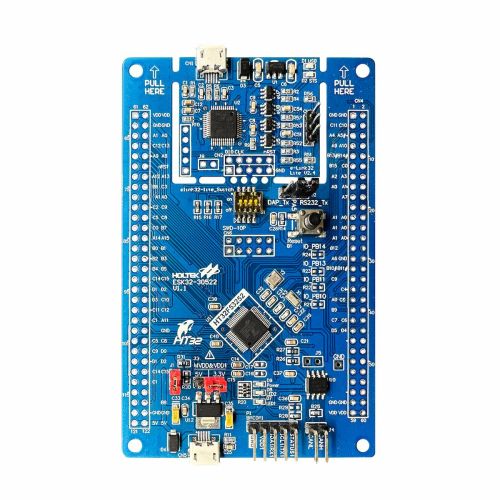

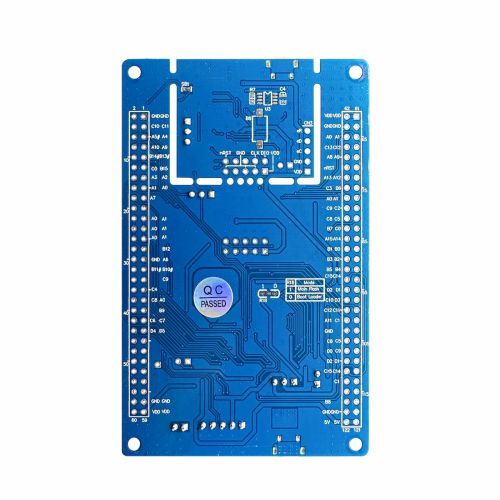

HT32F53252 Starter Kit ESK32-30522

₹3,007.25

The product is a starter kit for the 32-bit Arm® Cortex®-M0+ MCU, HT32F53252. It can help users get up, run, and use the HT32F53252 in the shortest possible time frame.

HSN Code: 9030.90.90.00-8

Only 1 left in stock!
EMI starting from ₹0.00/month - View Plans
Add to wishlist
SKU: ESK32-30522 Category:

Description

PRODUCT FEATURES
  1. Using HT32F53252 high performance, low-power microcontroller
  2. Up to 60MHz operating frequency
  3. 128KB Flash, 16KB SRAM
  4. Integrated multiple timers, one CAN, interfaces, single 12-bit A/D converter, and LED controller
  5. Can be used for the testing and development of many external devices
  6. 64LQFP package
  7. 16.000 MHz External Crystal Clock
  8. 54 programmable general purpose I/O pins
  9. Comprises Target Board and Serial-Wire Debugger
  10. Can use the Target Board external power supply or be powered by the e-Link32 Pro USB supply
  11. Assembled dimension: 173 x 99 x 24 mm
  12. Net weight: 25.1g
  13. Product includes:
    1. Starter Kit ESK32-30522 x 1
    2. Nylon standoff x 4
DEVELOPMENT ENVIRONMENT
  1. Provides a standard C language program development environment
  2. Provides a comprehensive functional library avoiding much complicated lower level functional development
  3. Integrated hardware debug interface, SWD, connects to the IDE using a USB. The system will download the programs and debug immediately
  4. Rich development solution: Keil MDK-ARM, IAR EWARM, SEGGER Embedded Studio, GNU Toolchain
USAGE
RESOURCES
  1. Starter kit: ESK32-30522, including user manual, software, firmware library, schematics, etc.
  2. MCU: Holtek HT32F53252, 32-Bit Arm® Cortex®-M0+ 5V CAN MCU, including datasheet, package information, etc.
