Description
DESCRIPTION

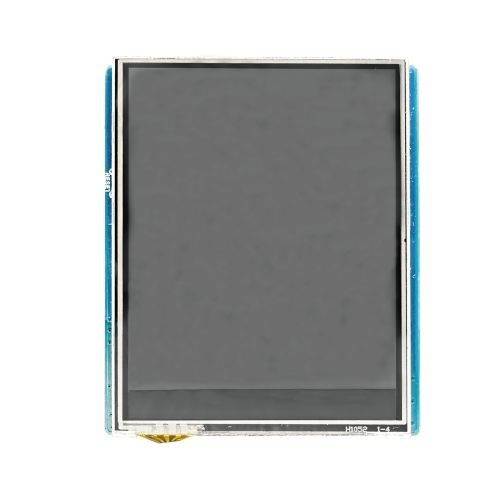

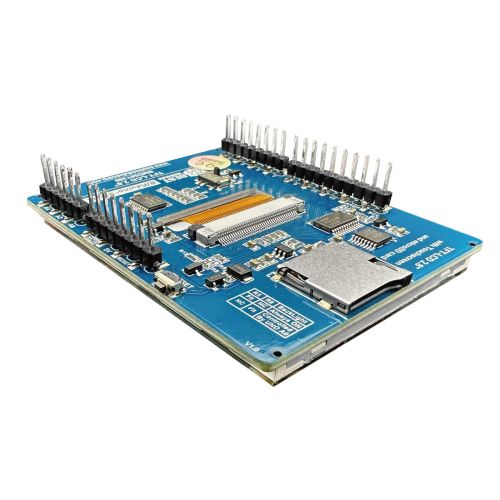

The BMD58T280 has an on-board 2.8-inch TFT LCD resistive touch screen with resolution of 240 x 320. There is a microSD card slot on the back of BMD58T280, you can store images with BMP format in a microSD card and easily and insert the card into the slot to read images.
If you would like to play videos, you need to use a micro SDHC or higher specification microSD card to store videos. There is a mode selection switch on the back of BMD58T280 as well. You need to switch it to EBI mode before reading videos.
It is user-friendly and straightforward to use. You can easily connect the BMD58T280 to the BMduino development board, like BM53A367A, or an Arduino development board, such as Arduino UNO, for seamless integration and utilization.
PRODUCT FEATURES
- Input voltage: 3.3V~5.5V
- Operating current: <120mA
- 2.8” TFT LCD
– IC: ILI9341
– Resolution: 240×320 - Resistive touch screen
– IC: XPT2046 - Includes MicroSD slot
- Interface: SPI, EBI (External Bus Interface)
- Dimension: 55 x 70 x mm
- Net weight: 16.3g
HARDWARE OVERVIEW
RESOURCES
- Application note: AN0470E, HT32 Series EBI
